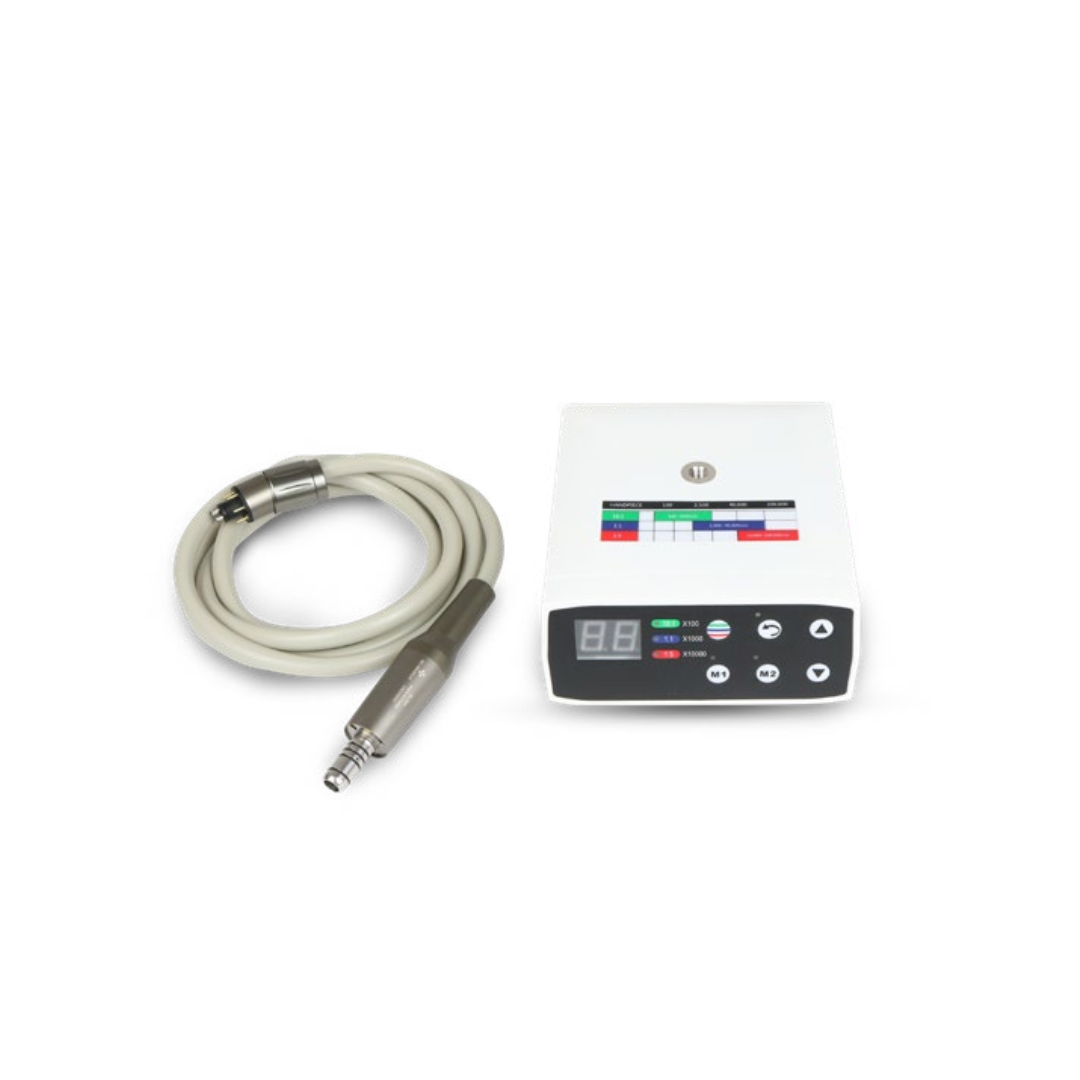

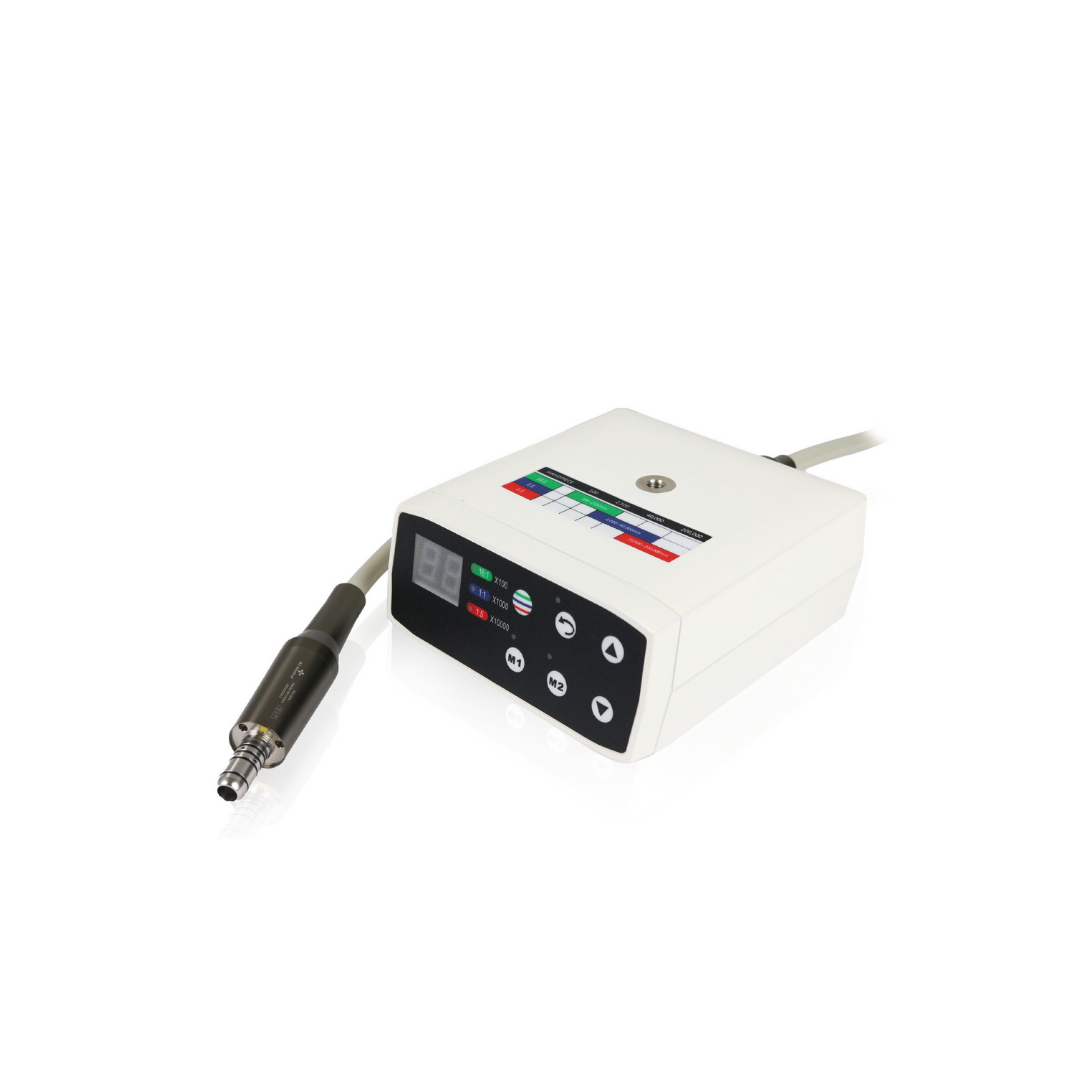

Brushless Clinical Micromotor

Brushless Clinical Micromotor – Advanced Low-Voltage Dental Motor System
Model: Not specified

This advanced brushless clinical micromotor system combines ultra-quiet operation, precision control, and a wide range of speeds to support diverse dental procedures. Designed for maximum clinical reliability and ease of use, it represents a next-generation solution for modern dental practices.

Advanced Brushless Motor Technology

The brushless design eliminates carbon brush wear, providing maintenance-free operation, longer service life, and stable, consistent performance. It delivers a smooth, reliable power output across all procedures, while significantly reducing vibration and heat buildup.

Whisper-Quiet Operation for a Calmer Environment

Operating at less than 60dB, this micromotor contributes to a more comfortable and focused clinical environment. Its quiet performance reduces patient anxiety and supports better concentration during delicate procedures.

Three Precision Reduction Ratios

• 16:1 Reduction: For ultra-low speeds (100–2,500 RPM), ideal for endodontic and fine-detail work

• 1:1 Direct Drive: Covers 2,000–40,000 RPM for general restorative and surgical applications

• 1:5 Speed Increase: Delivers up to 200,000 RPM, perfect for polishing and high-speed tasks

Compact, Ergonomic Motor Design

Weighing only 71g with dimensions Ø22×71mm, the motor offers excellent maneuverability and minimizes operator fatigue. Its ergonomic profile allows better control and access, particularly in extended or complex procedures.

Efficient Power and Control System

Operating on a low-voltage DC 24V input, the system ensures safe and efficient energy use. The compact controller (150×128×55mm) integrates smoothly into any clinical setup, conserving valuable workspace while offering full functionality.

Wide-Speed Range and Application Versatility

The micromotor accommodates speeds from 100 to 200,000 RPM through variable control, supporting procedures in general dentistry, endodontics, oral surgery, and preventive care. From root canal work to finishing and polishing, this system adapts effortlessly to clinical needs.

Technical Specifications

• Motor Speed Range: 2,000–40,000 RPM (base)

• Reduction Ratios: 16:1, 1:1, 1:5 (for 100–200,000 RPM capability)

• Noise Level: <60dB

• Input Power: DC 24V

• Motor Dimensions: Ø22×71mm

• Motor Weight: 71g

• Controller Size: 150×128×55mm

• Total System Weight: 1,250g

• Technology Type: Brushless

Clinical Benefits

This micromotor system enhances workflow efficiency by eliminating the need for multiple handpieces. Rapid speed adjustments and a wide operating range ensure smooth transitions between procedures. Reduced vibration and high torque stability support greater accuracy and comfort in every application.

Built for Long-Term Reliability

Manufactured to professional standards and rigorously tested, the system offers consistent clinical results and long-term value. Its intuitive design requires minimal training and integrates easily into existing practice environments.

Conclusion

The Brushless Clinical Micromotor delivers high-performance dental motor capabilities in a lightweight, compact system. With advanced engineering, precision calibration, and broad clinical compatibility, it empowers dental professionals to work with greater confidence, control, and efficiency.
